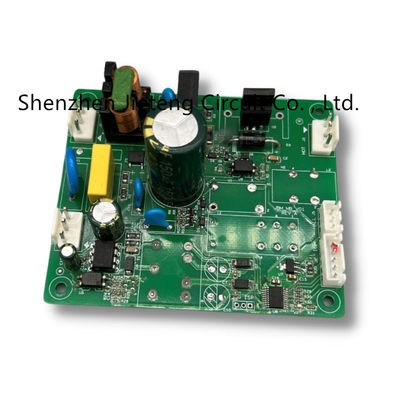

10-Layer Battery Printed Circuit Board PCB Assembly With 0.5 Mm Component Pitch

Product Description:

The surface finish options for this PCB SMT Assembly product are HASL and ENIG, providing flexibility to meet your specific requirements. HASL is a cost-effective option that provides a reliable finish for most applications. ENIG, on the other hand, is a more expensive option that provides a superior finish for high-performance applications that require superior conductivity and long-term reliability.

This PCB SMT Assembly product is also equipped with a flying probe test, which is a highly accurate and efficient testing method that ensures the quality and reliability of your assembled product. This test type helps to detect any potential defects in the assembly process before your product is shipped, reducing the likelihood of costly and time-consuming product returns.

In addition, the silk screen color of this assembly is white, providing clear and easy-to-read labeling that can help to simplify your assembly process. Our Surface Mount Soldering Assembly process ensures that each component is accurately placed and soldered to the board, providing a secure and reliable connection that will withstand even the most demanding applications.

Overall, our PCB Printed Wiring Assembly product is a high-quality solution that offers a range of features and benefits to meet your specific electronic assembly needs. Whether you require a cost-effective solution for a simple application or a high-performance option for a complex project, our PCB SMT Assembly product is designed to provide the performance and reliability you need.

Applications:

One of the main applications of JIETENG PCB circuit board is surface mount device assembly. The circuit board is designed to accommodate SMD components, which are placed directly onto the board surface. This type of assembly is commonly used in electronic devices, such as smartphones, laptops, and tablets. The circuit board's small size and high component density make it ideal for SMD assembly, which requires precision and accuracy.

Another application of JIETENG PCB circuit board is through-hole assembly. This involves inserting component leads through holes in the circuit board and soldering them to the opposite side. This type of assembly is commonly used in industrial equipment, automotive, and aerospace industries. The circuit board's thick copper layer and excellent electrical properties make it ideal for through-hole assembly.

The JIETENG PCB circuit board is also suitable for high-speed digital and analog circuits. Its 10-layer PCB layer and small component pitch allow for the precise placement of components, which is essential for high-speed circuits. This type of circuit is commonly used in telecommunications, networking, and medical devices.

In conclusion, JIETENG PCB circuit board is a versatile and high-quality product that can be used in various industries. Its FR-4 material, copper thickness, and component pitch make it ideal for surface mount device assembly, through-hole assembly, and high-speed digital and analog circuits. It is a reliable and cost-effective solution for all your PCB needs.

Customization:

At JIETENG, we offer product customization services for our PCB SMT Assembly products. Our PCB Printed Wiring Assembly services allow you to customize your PCB circuit board to meet your specific needs.

Our PCB Printed Wiring Assembly service includes:

• Copper Thickness: 3oz
• Min. Hole Size: 0.2mm
• Surface Finish: HASL, ENIG
• PCB Material: FR-4

Our Printed Circuit Board Soldering services include:

• Surface Mount Technology (SMT) assembly
• Through-hole assembly

As a leading PCB SMT Assembly manufacturer in China, we pride ourselves on our ability to offer customized solutions for our customers. Contact us today to learn more about our PCB Printed Wiring Assembly and Printed Circuit Board Soldering services.

FAQ:

A: Our model number is PCB circuit board.

A: Our PCB circuit board is manufactured in China.

A: Our PCB circuit board is made with high-quality materials including copper, fiberglass, and solder mask.

A: Yes, we offer customization services for our PCB circuit board. Please contact us for more information.

5. Q: What information is needed for PCB quotation?
A: Gerber files and technical requirements. Such as PCB material, thickness, copper surface, color of mask and silk screen, etc. )
